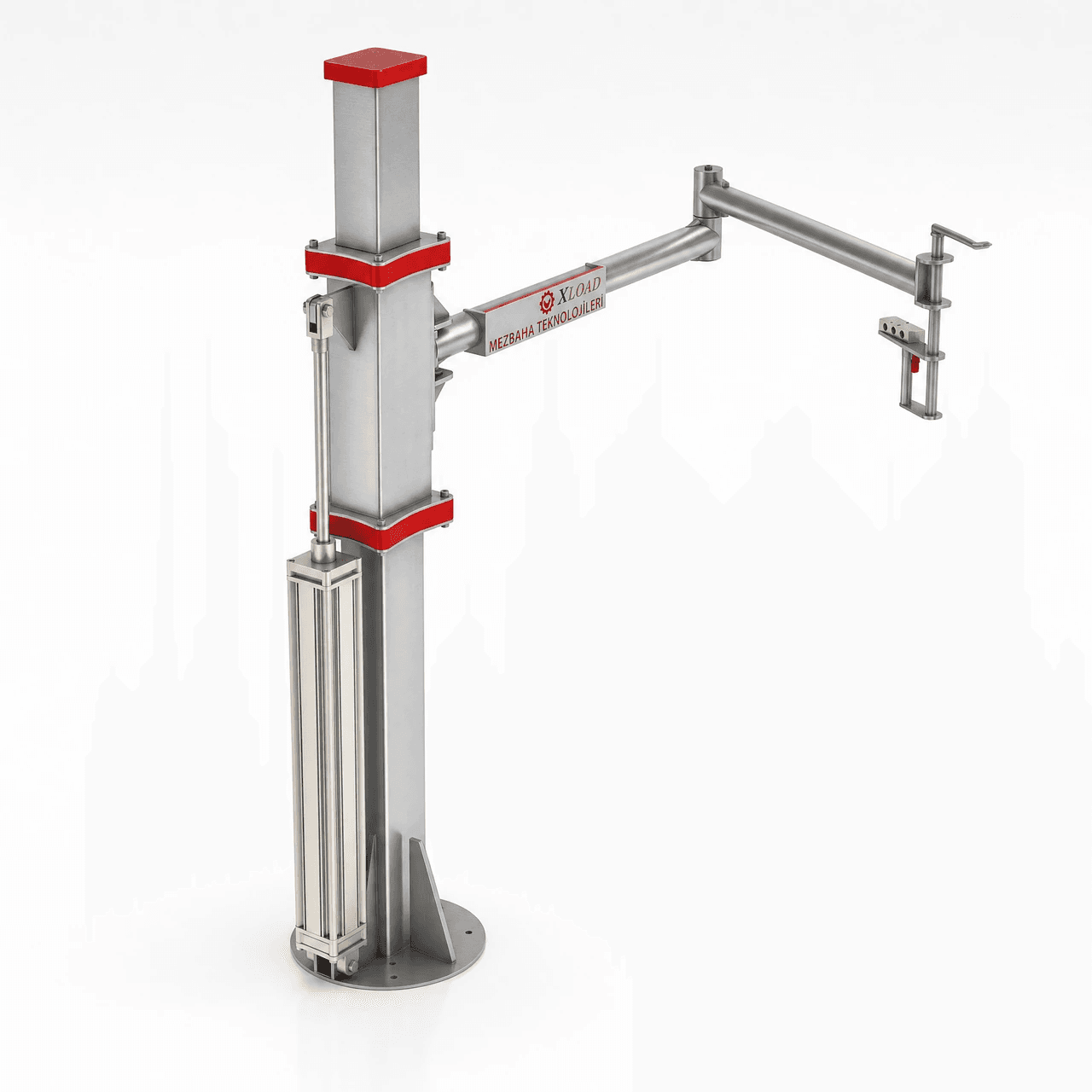

The Carcass Loading Arm is designed to transfer quartered carcass meat from an elevated position into a trolley in a safe and controlled manner. Its stainless steel body, rotating structure, and foldable design make it a practical loading solution for slaughterhouse operations.

Controlled Carcass Transfer

The system is used to transfer quartered carcass meat collected from a maximum height of 2,400 mm into a trolley. Its rotating body provides manoeuvrability during loading and helps operators adapt the equipment to the working area.

Compact and Durable Design

The stainless steel body is designed for hygiene-sensitive and demanding slaughterhouse environments. Its foldable structure helps reduce the space occupied by the equipment when it is not in use.

Body-Integrated Hydraulic System

In the hydraulic version, the unit is mounted within the body. This compact configuration eliminates the need for an additional external unit.

Technical Specifications

Product Type: Carcass Loading Arm / Meat Loading Robot Body Material: Stainless steel Application: Transfer of quartered carcass meat into a trolley Maximum Loading Height: 2,400 mm Movement Capability: Rotating body for manoeuvrability Design: Foldable structure Hydraulic Version: Power unit integrated into the body Additional External Unit: Not required

Outstanding Advantages

•Controlled Elevated Transfer: Used to transfer quartered carcass meat from a maximum height of 2,400 mm into a trolley. •Easy Manoeuvrability: The rotating body design supports practical handling during loading. •Space-Saving Structure: The foldable design helps reduce the required space when the equipment is not in use. •Stainless Steel Body: Provides a durable, hygiene-focused structure for slaughterhouse use. •Integrated Hydraulic Solution: In the hydraulic version, the body-mounted unit removes the need for a separate external unit. Make your carcass transfer process more organised, practical, and controlled with the Carcass Loading Arm.
