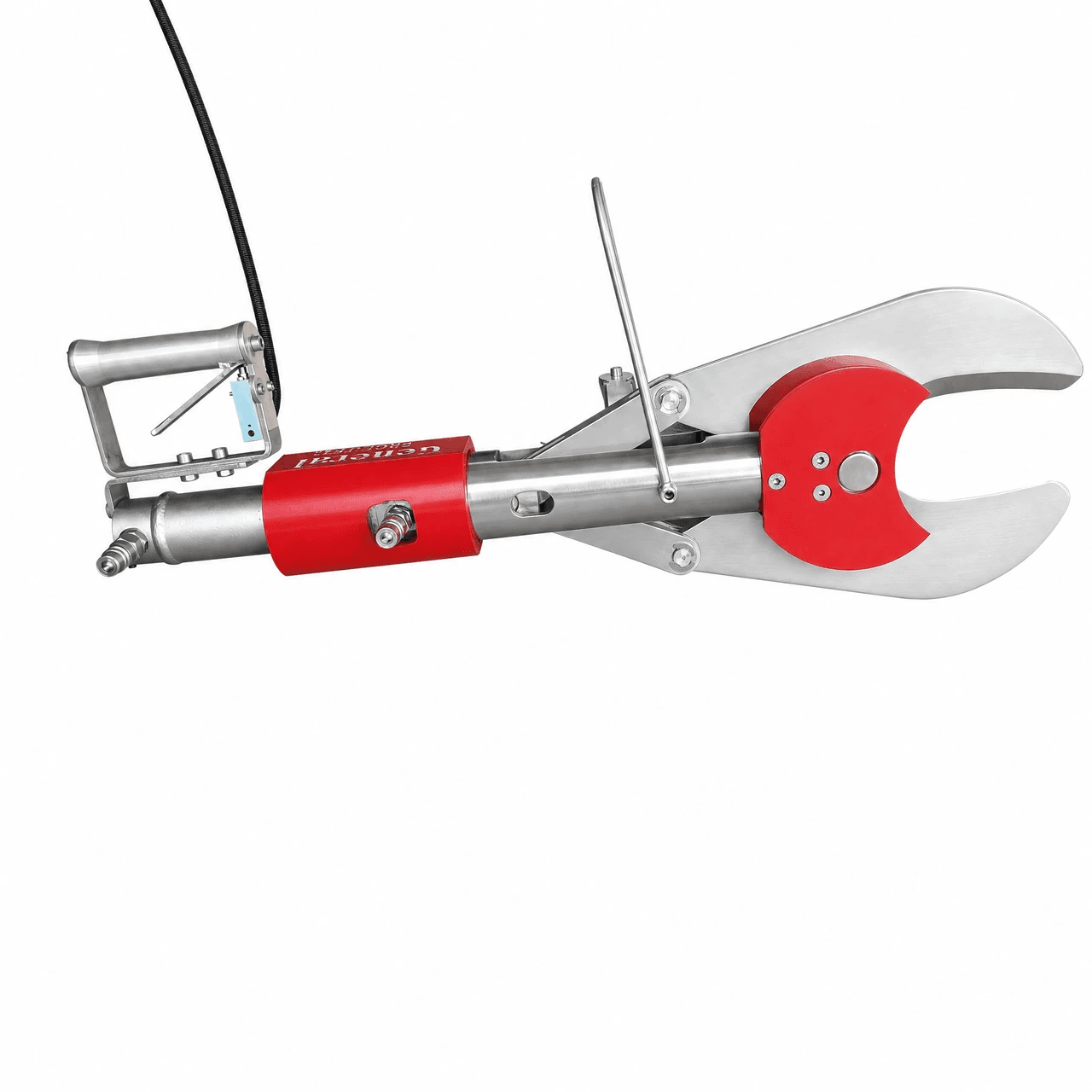

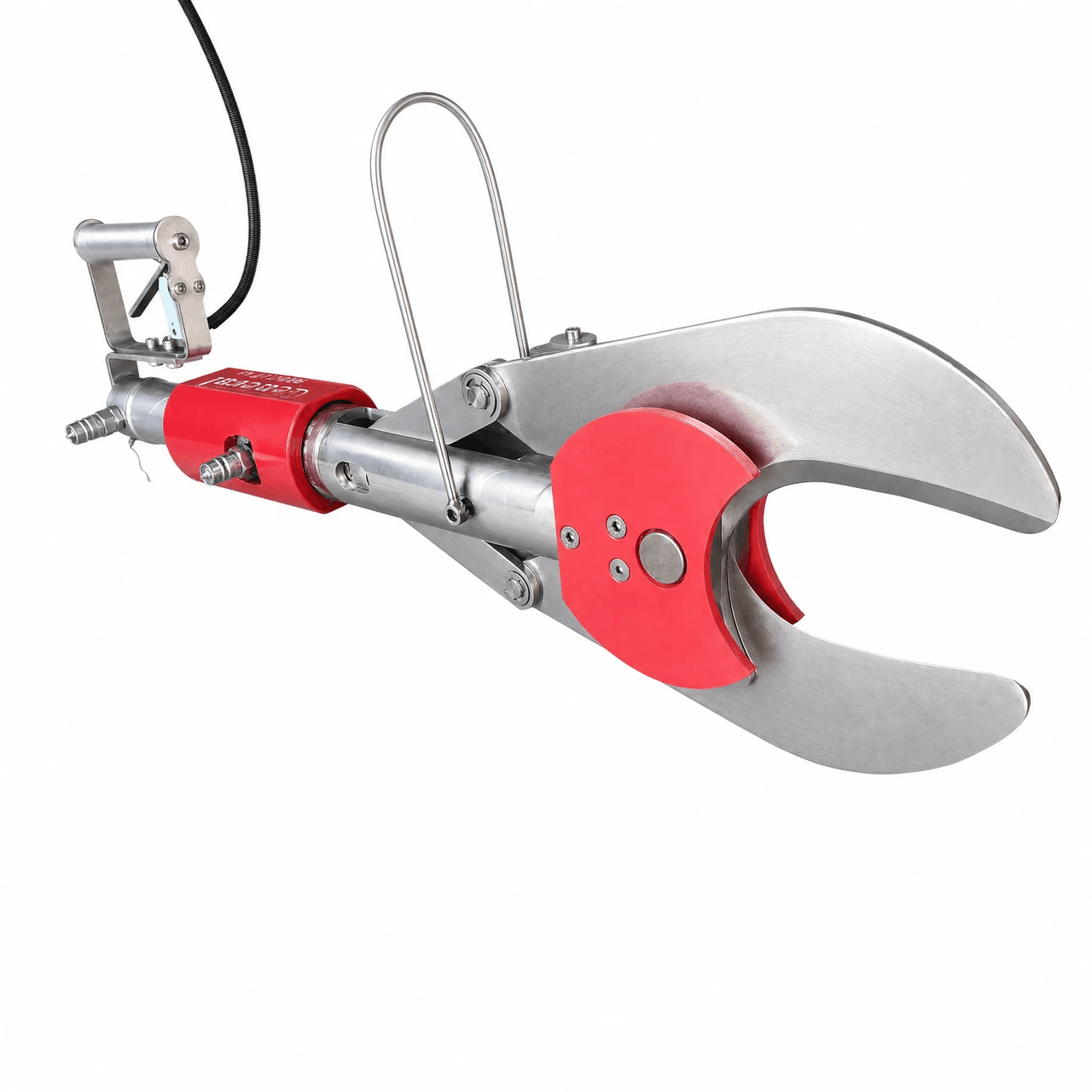

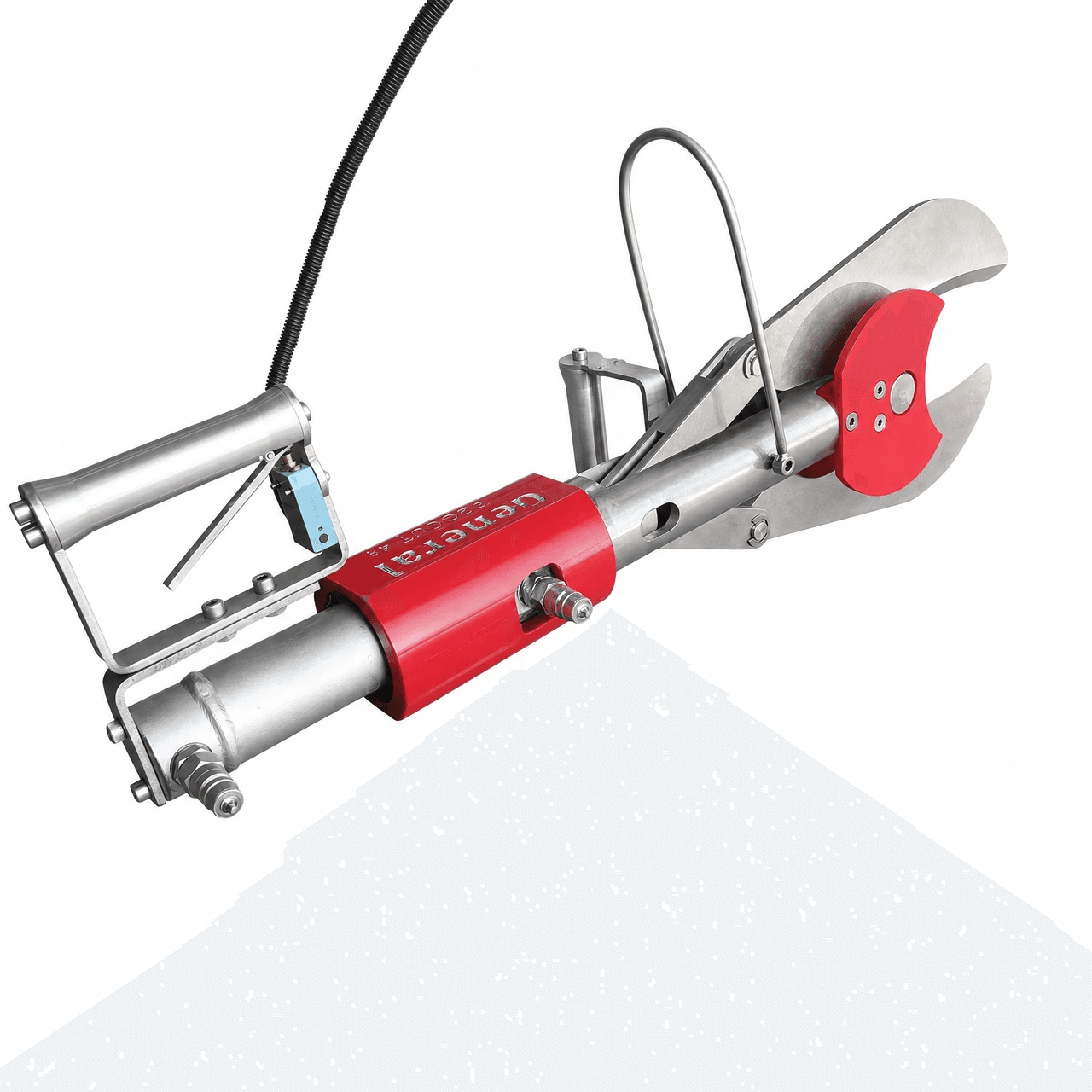

The Leg and Horn Cutter is hydraulic equipment designed for cutting the fore and hind leg joints, along bone lines, and horns in cattle slaughter facilities. Its powerful construction, balanced handling, and long-life cutting edges provide a dependable solution for slaughter-line operations.

Powerful Hydraulic Cutting System

With a 44 kN cutting force, the hydraulic system provides controlled performance for demanding cutting applications. A 105 mm blade opening accommodates varied cutting requirements, while the 650 mm machine length supports practical use in the working area.

Durable and Hygienic Construction

The machine is manufactured entirely from stainless steel, providing corrosion resistance for intensive slaughterhouse conditions. Hardened, corrosion-resistant cutting edges offer a long service life and help reduce maintenance requirements.

Integrated Slaughter-Line Use

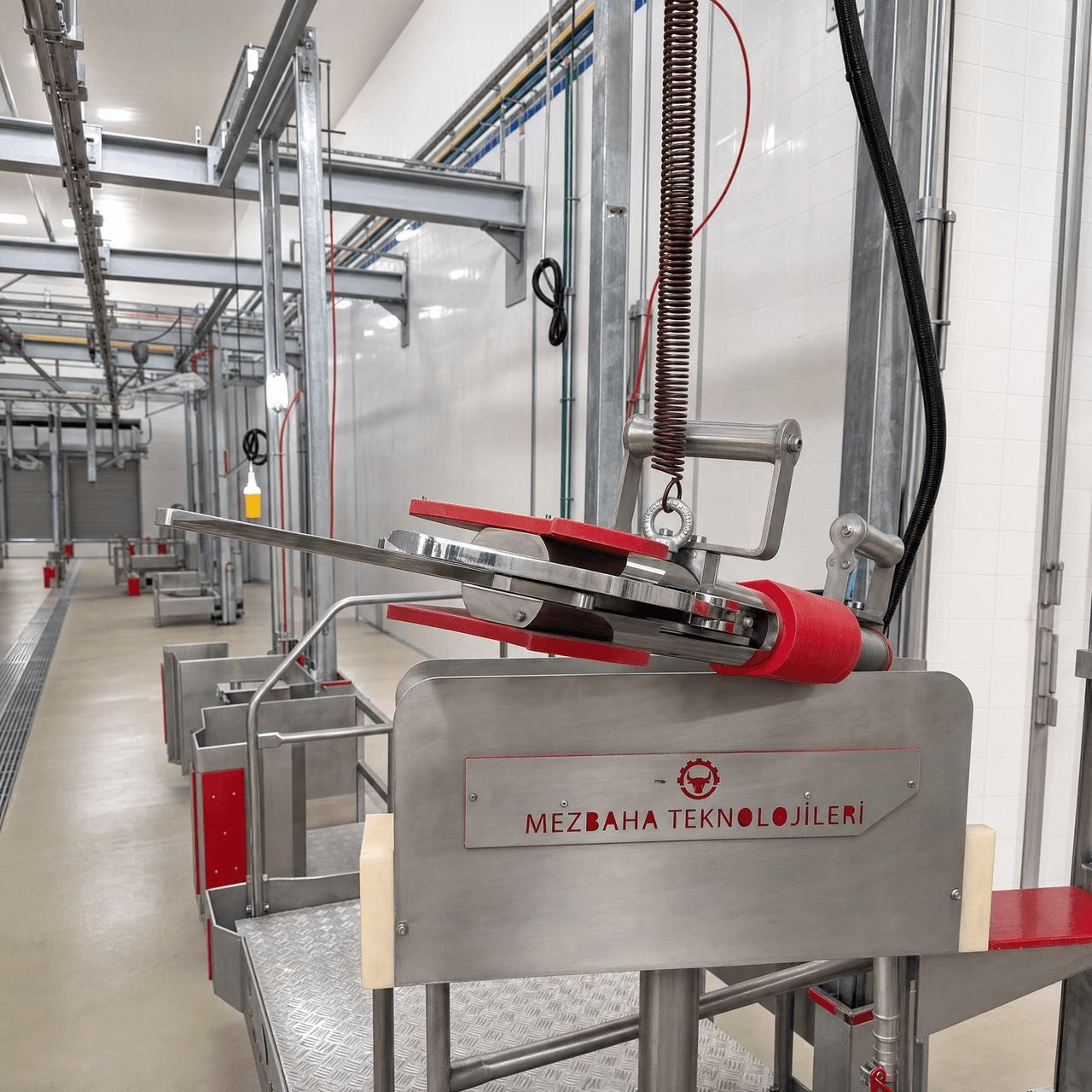

The cutter is generally used with balancer support at the transfer station in slaughter facilities. Its suitability for cattle of all sizes gives operators flexibility across foreleg, hind leg, and horn-cutting applications.

Technical Specifications

Feature	Specification
Drive	Hydraulic
Cutting force	44 kN
Blade opening	105 mm
Machine length	650 mm
Machine weight	28 kg
Body material	Stainless steel
Hydraulic power-unit motor	3 kW
Operating voltage	230 V, 3-phase, 60 Hz
Hose length	5 m
Oil capacity	56 L
Power-unit dimensions	65 × 42 × 65

Outstanding Advantages

•Powerful Hydraulic Cutting: A 44 kN cutting force supports foreleg, hind leg, and horn-cutting applications. •Durable Cutting Edges: Hardened, long-life, corrosion-resistant blades help reduce maintenance requirements. •Stainless Steel Body: A durable structure suited to hygiene-sensitive slaughterhouse environments. •Flexible Application: The design is suitable for cattle of all sizes and accommodates different cutting requirements. •Balancer-Supported Use: The cutter can be used with balancer support at the transfer station, helping it integrate with the slaughter line. Use the Leg and Horn Cutter to bring powerful, controlled, and durable hydraulic cutting to your slaughter line.
