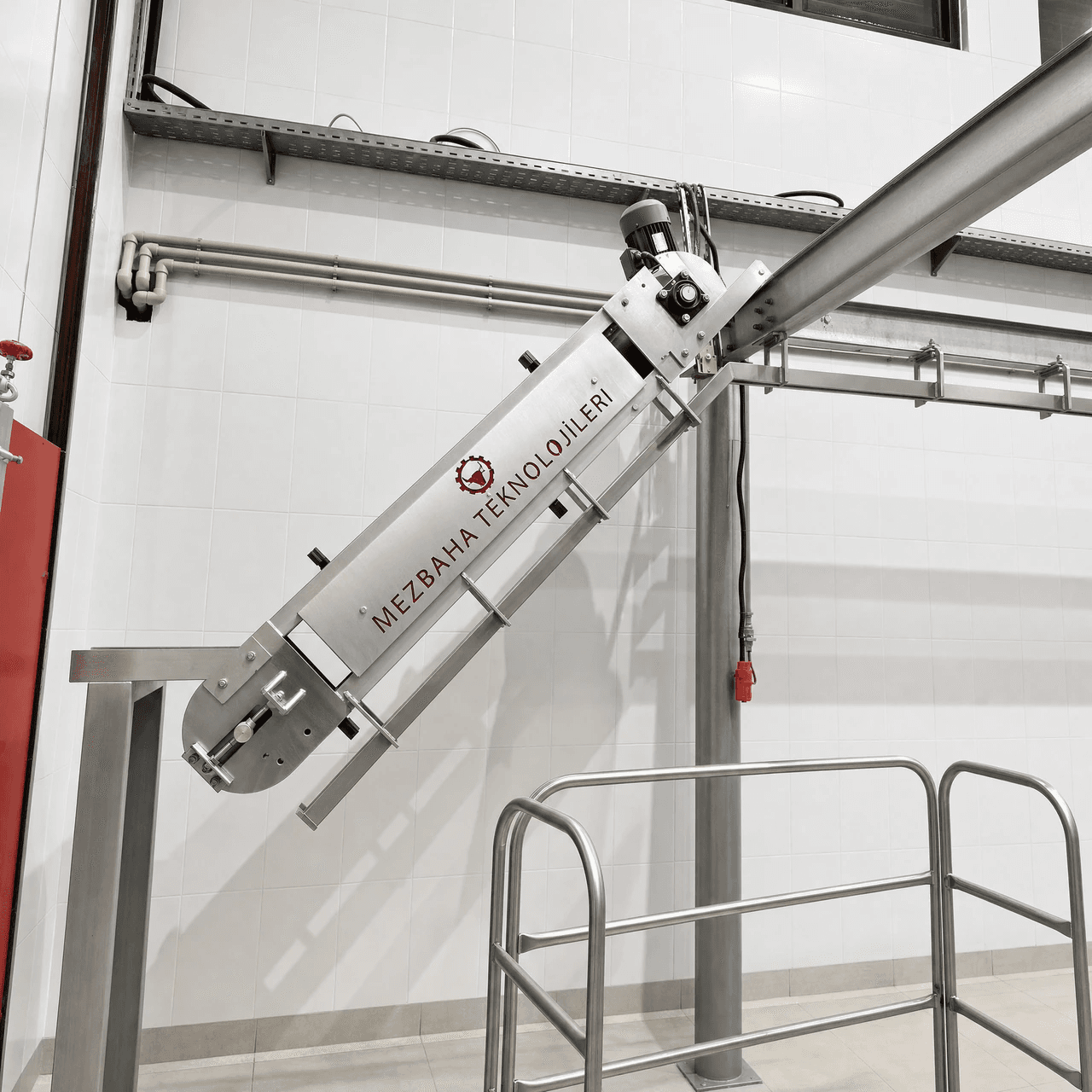

The Quartering Elevator is designed to support the process of dividing a carcass into four parts without removing it from the rail. By providing a controlled, gradual transition from a higher rail to a lower rail, the system helps maintain an orderly workflow in the quartering line.

Slow and Controlled Rail Transition

The system performs a slow lowering process between higher and lower rail levels. This controlled movement helps keep the carcass on the rail during the quartering stage until the process is completed.

Quiet and Smooth Operation

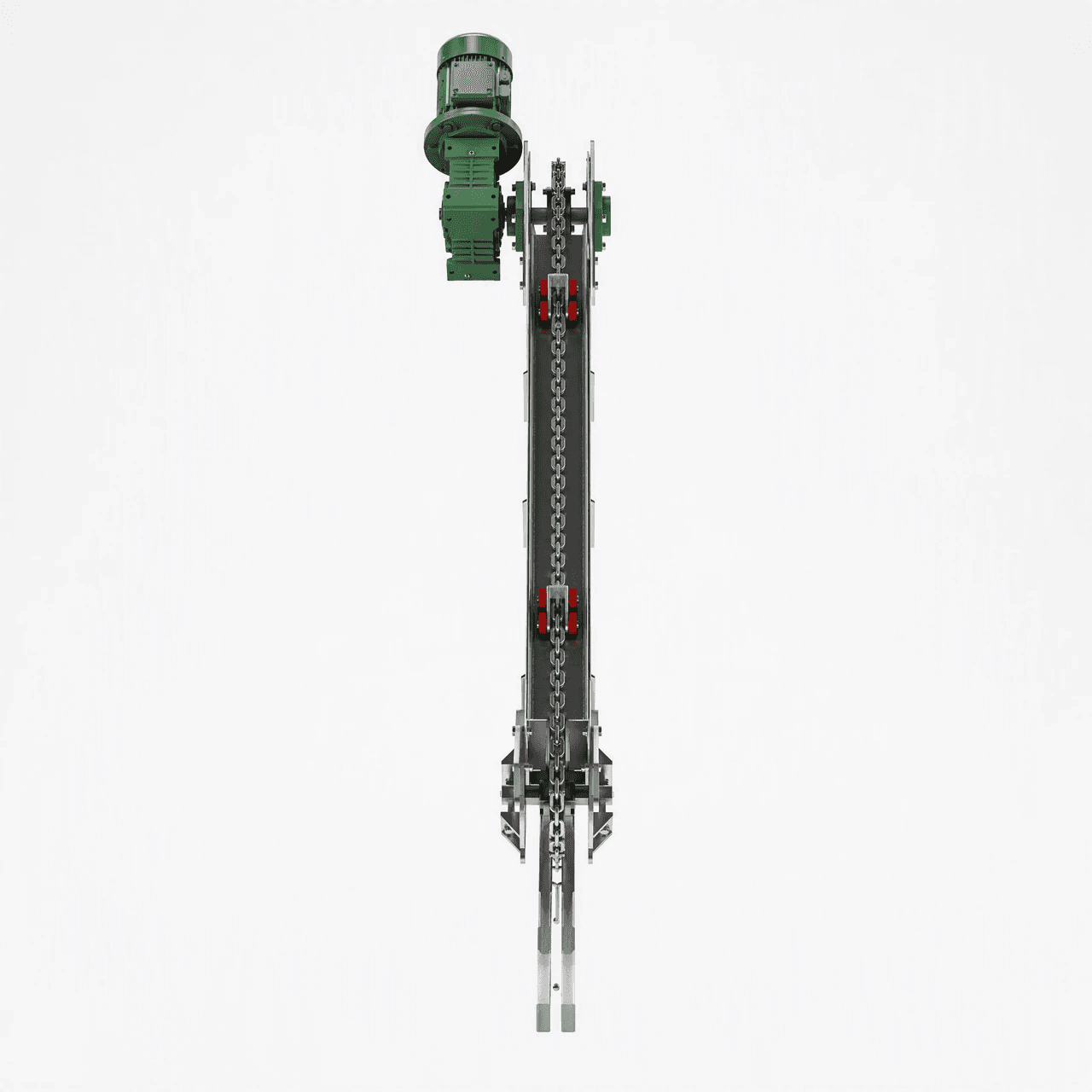

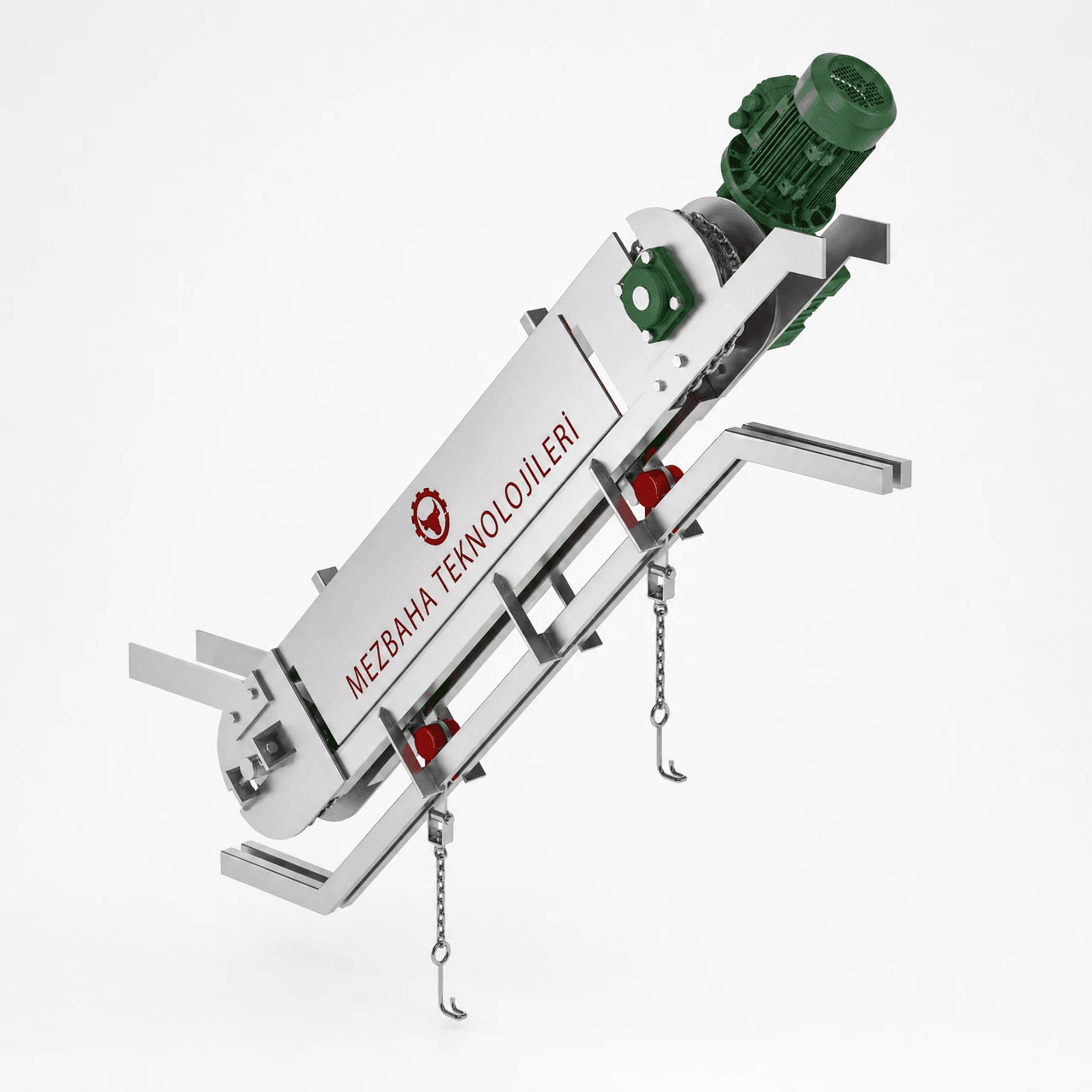

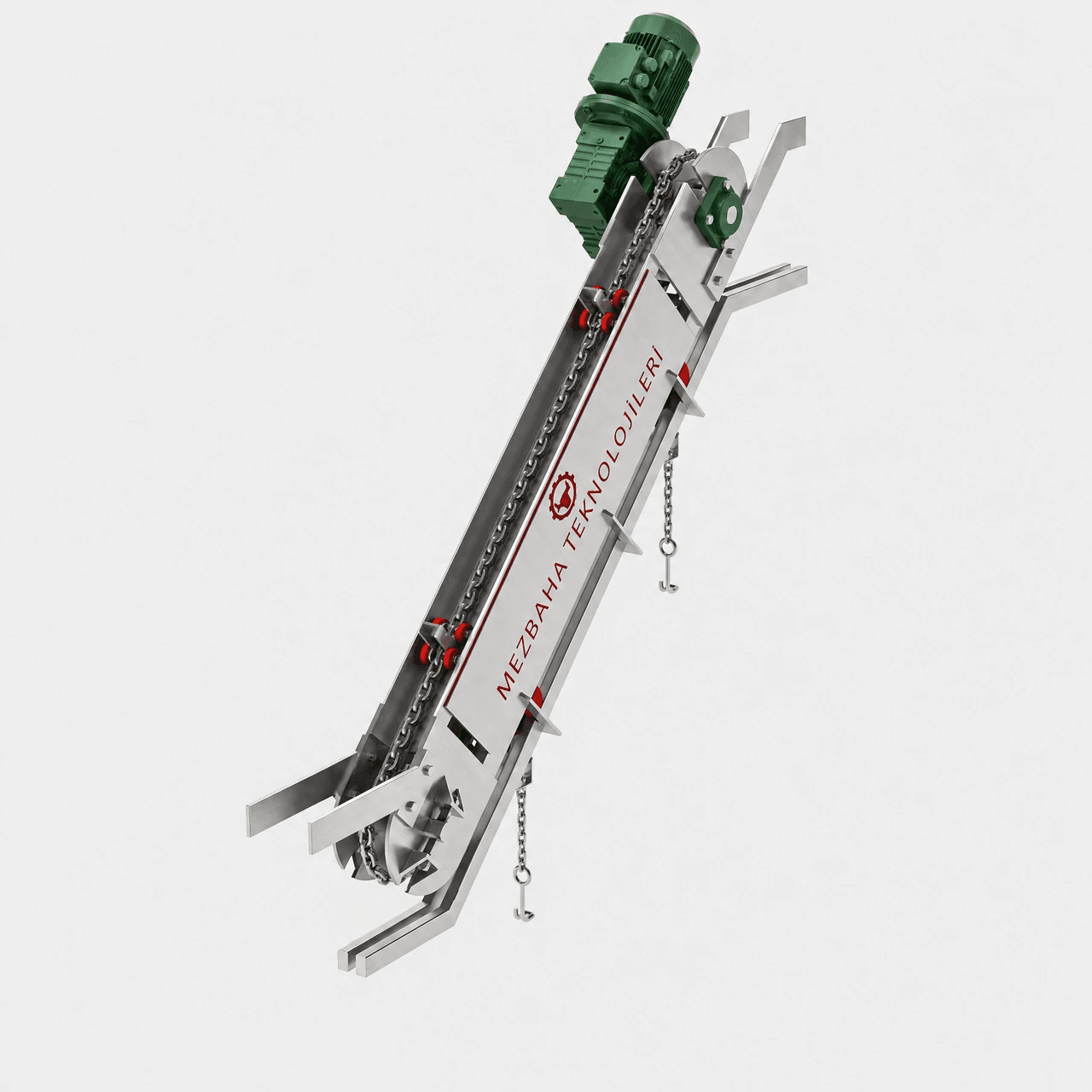

The motor-reducer-driven structure operates with two special gears and a dedicated chain system. Its quiet and vibration-free operating characteristic helps support organised line operations in the slaughterhouse.

Versatile Application

In addition to quartering operations, the system can be used to transfer incoming carcasses to the meat cold room. The 45° lowering and lifting feature accommodates transitions between different rail levels.

Technical Specifications

Product Type: Quartering Elevator Application: Supports quartering a carcass into four parts without removing it from the rail Rail Transition: Slow lowering from a higher rail to a lower rail Drive System: Motor-reducer Transmission System: Two special gears and a dedicated chain system Operating Characteristic: Quiet and vibration-free operation Movement Angle: 45° lowering and lifting Additional Application: Transfer of carcasses to the meat cold room

Outstanding Advantages

•Quartering Without Rail Removal: Supports the process of dividing the carcass into four parts while it remains on the rail. •Controlled Height Transition: Provides a slow lowering function between higher and lower rail levels. •Balanced Operation: Quiet and vibration-free operation helps the system adapt to line processes. •Special Transmission Structure: Special gears and a dedicated chain system form a dependable drive configuration. •Additional Transfer Use: Helps transfer carcasses to the meat cold room. Bring controlled, orderly, and efficient flow to your quartering and carcass-transfer processes with the Quartering Elevator.
