Product Description

Pressurized Waste Discharge for Offal Operations

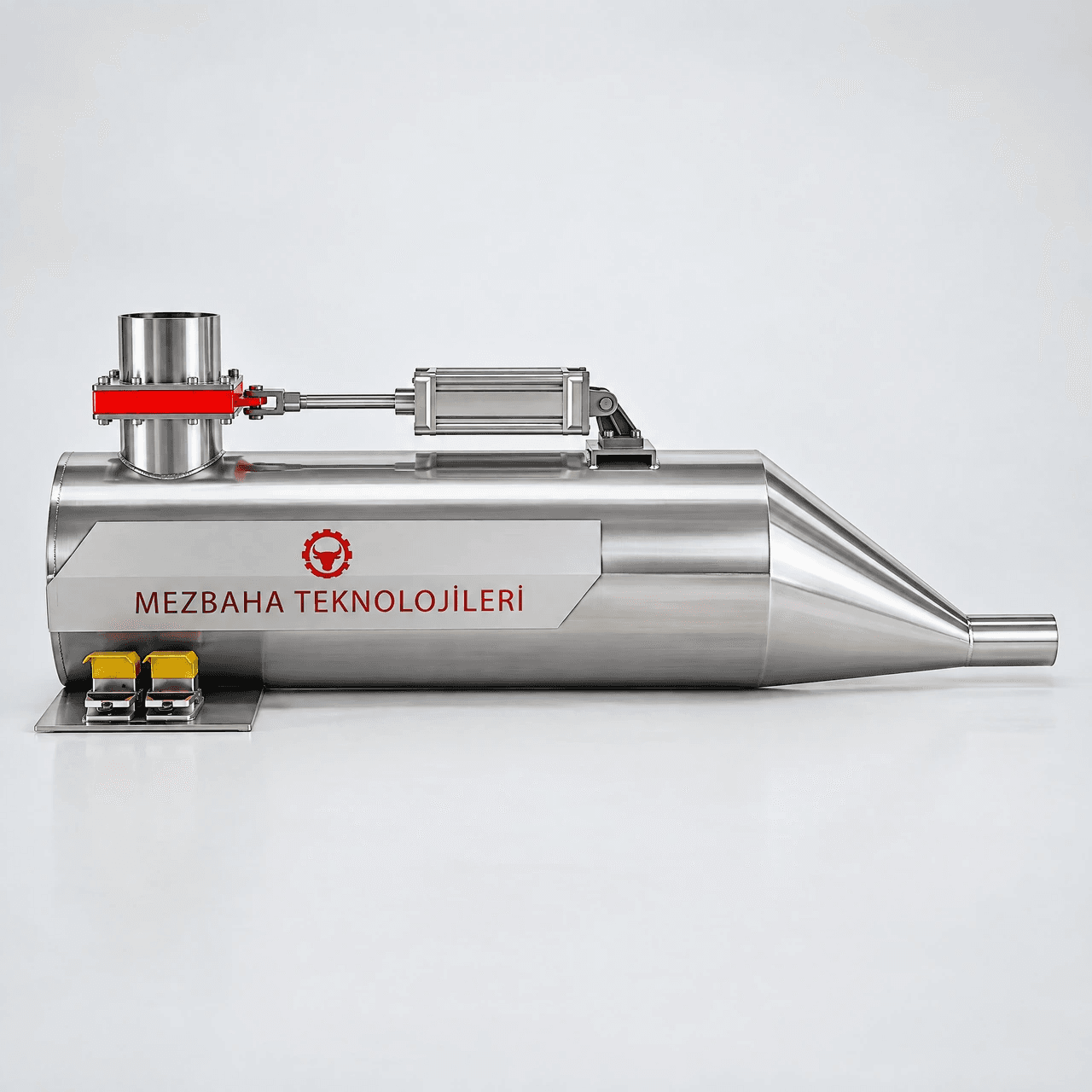

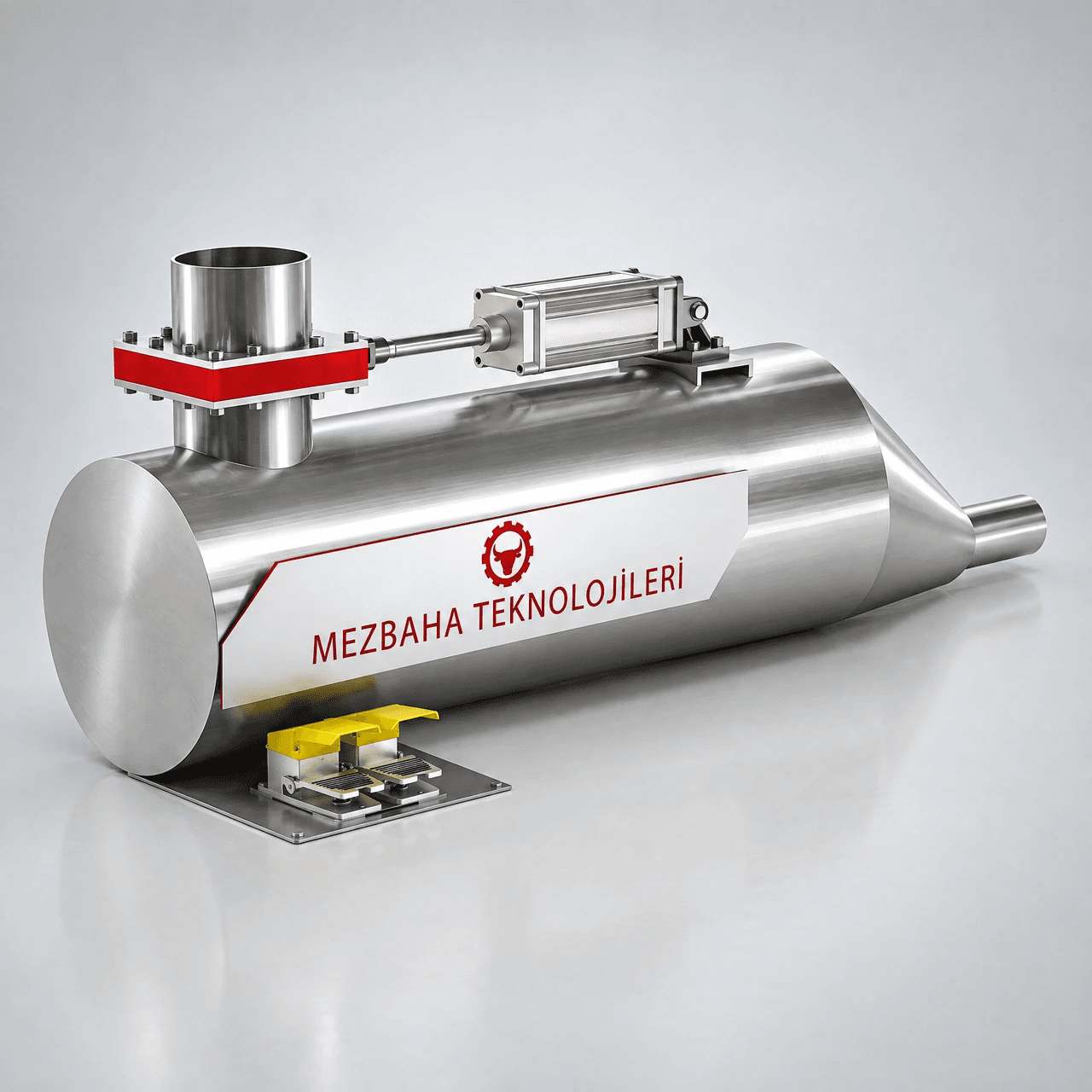

The Slaughterhouse Tripe Waste Pump is used for the pressurized discharge of waste in slaughterhouse systems. It is intended for transferring fibrous solid waste generated in the offal room to a vehicle outside the facility, helping operations manage the waste flow in a more orderly manner. With a capacity range of 5–200 m³/h and a pump head of 2–30 m, the system offers a working range for different line requirements. Its stated maximum solid-piece range of 25–50 mm supports the transfer process for fibrous solid waste.

Operating Values Suited to Your Line Requirements

The pump is specified for operation at temperatures up to +40 °C and speeds from 1400 to 2800 rpm. The system requires 10 bar pneumatic supply. These technical values help you assess the equipment against the layout and operating conditions of your project.

Technical Specifications

Application: Pressurized waste discharge in slaughterhouse systems Capacity: 5–200 m³/h Pump head: 2–30 m Maximum operating temperature: +40 °C Speed: 1400–2800 rpm Pneumatic requirement: 10 bar Maximum solid piece: 25–50 mm Transfer application: Fibrous solid waste transfer from the offal room to a vehicle outside the facility

Key Advantages

•Pressurized waste discharge: Provides a pumping solution designed for discharging waste in slaughterhouse lines. •Wide capacity range: The 5–200 m³/h capacity range can be evaluated for different operational requirements. •Solids-handling capability: A maximum solid-piece range of 25–50 mm supports the transfer of fibrous solid waste. •Pneumatic system requirement: The 10 bar pneumatic requirement helps plan the equipment according to the facility's air infrastructure.
