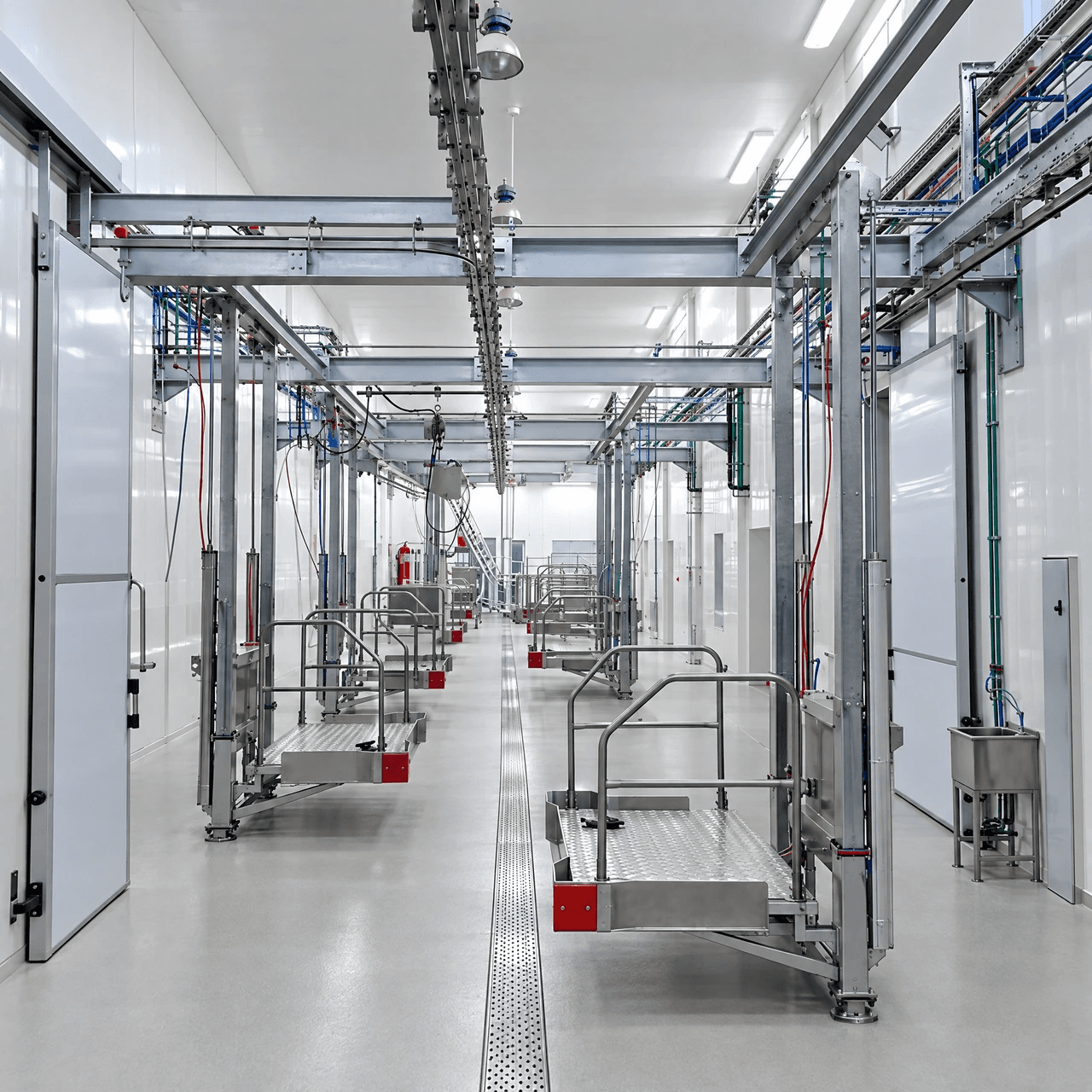

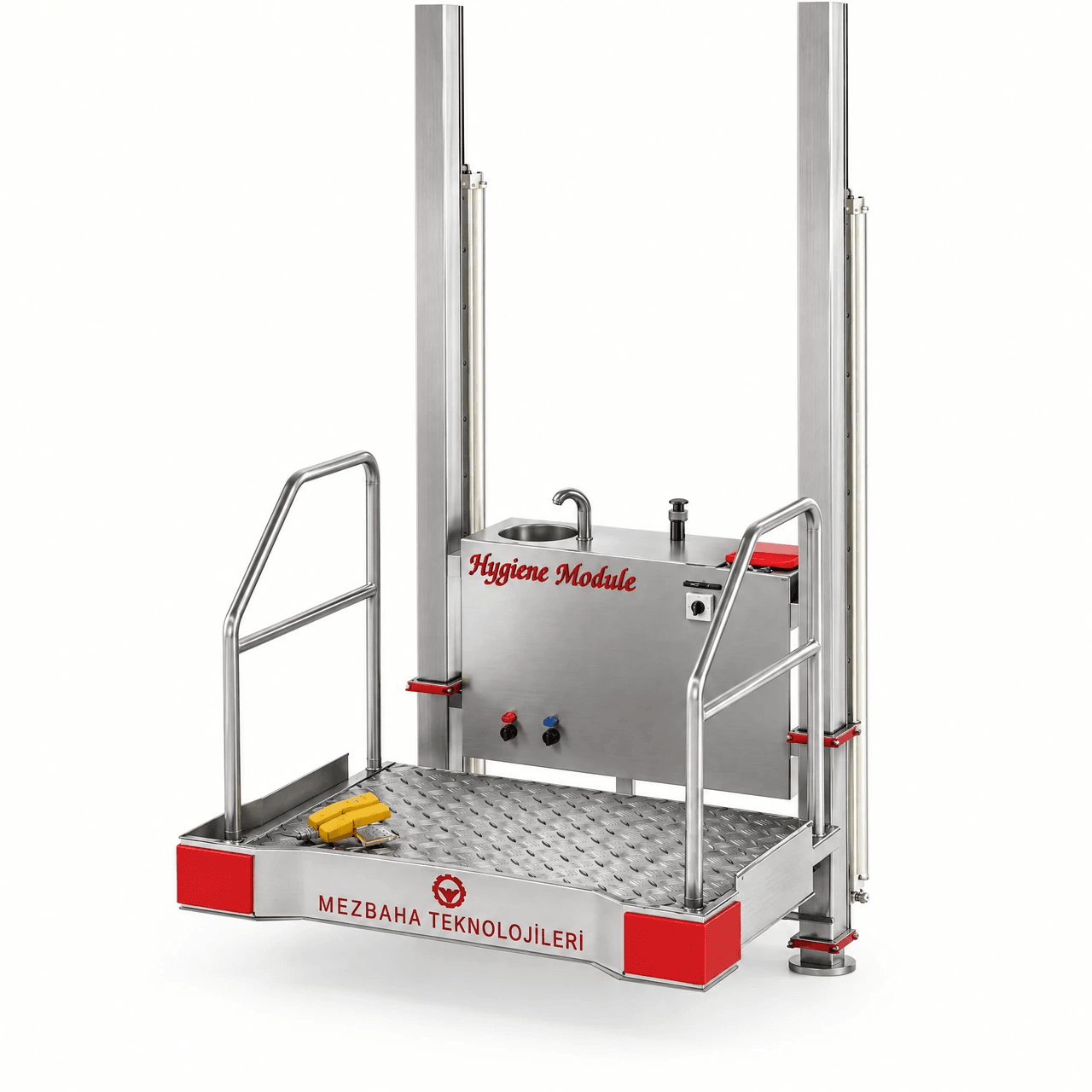

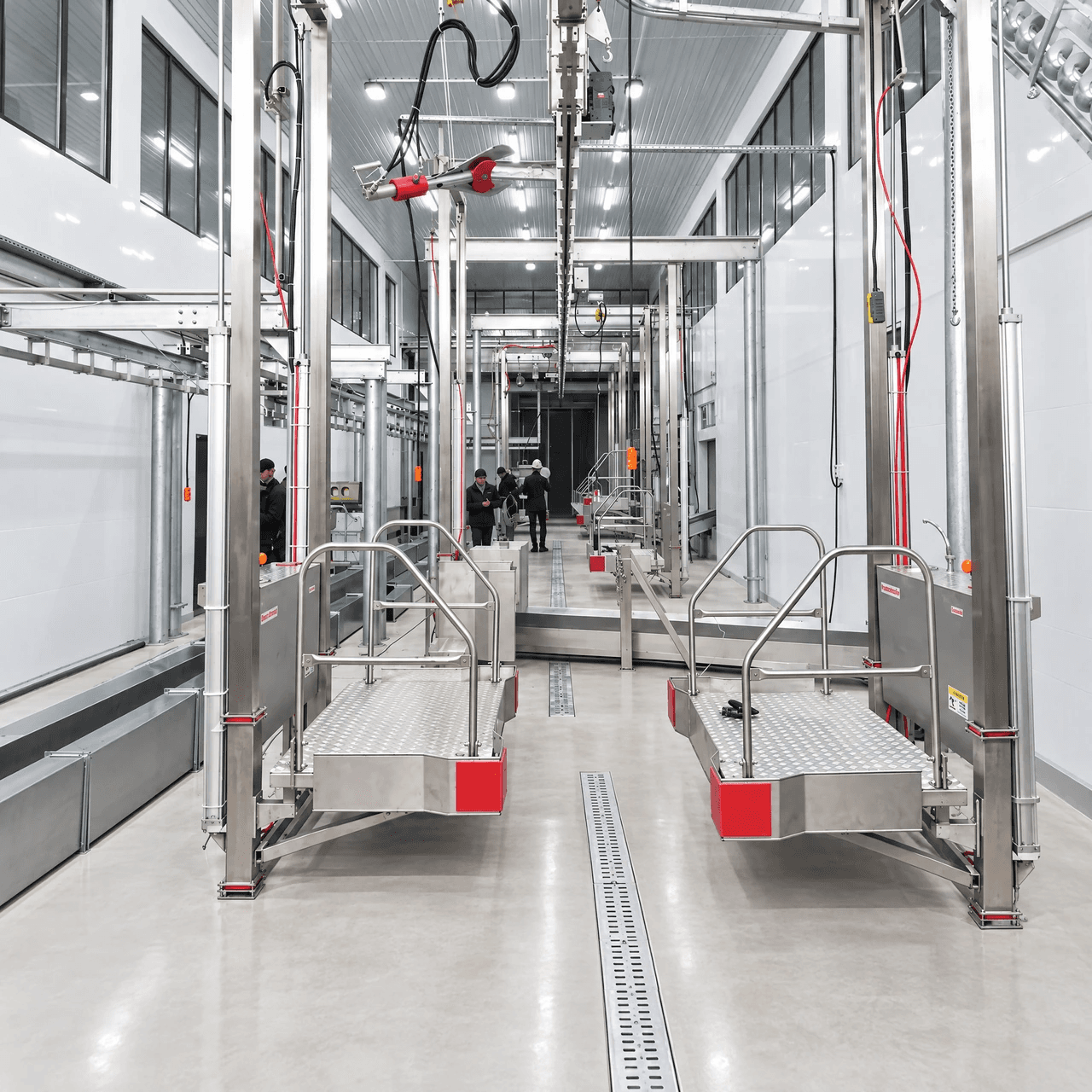

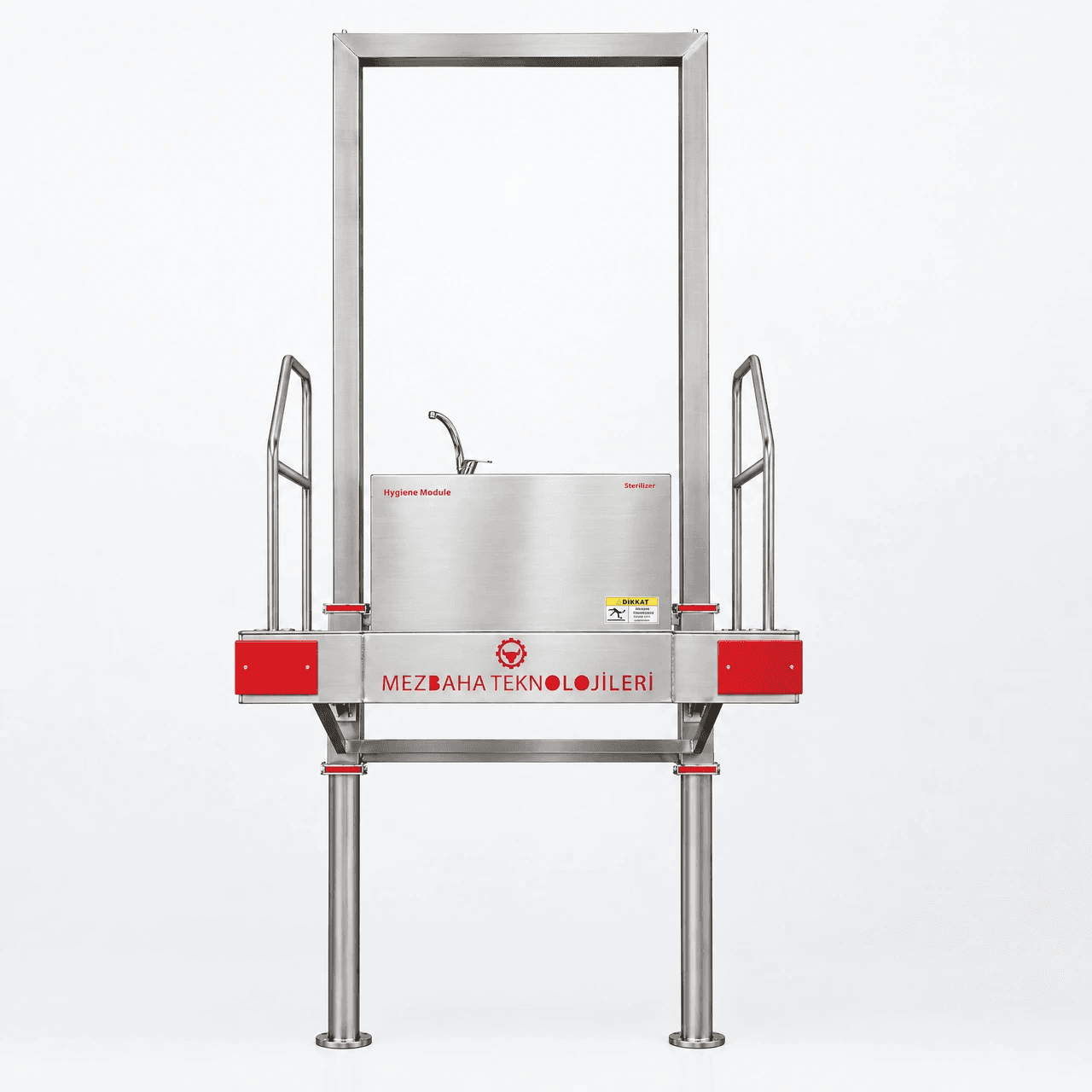

The Pneumatic Transferring Platform is a safe slaughterhouse work platform designed to adjust the working level according to animal height and the butcher’s operating position. Its pneumatic movement system supports a faster and more flexible workflow than fixed platforms in transfer operations.

Adjustable Working Height

The platform level can be adjusted to suit operating conditions. Its working height range of 500 mm to 1,700 mm adapts to different station and operational requirements, while the foot-controlled movement system provides practical handling.

Safe and Smooth Movement

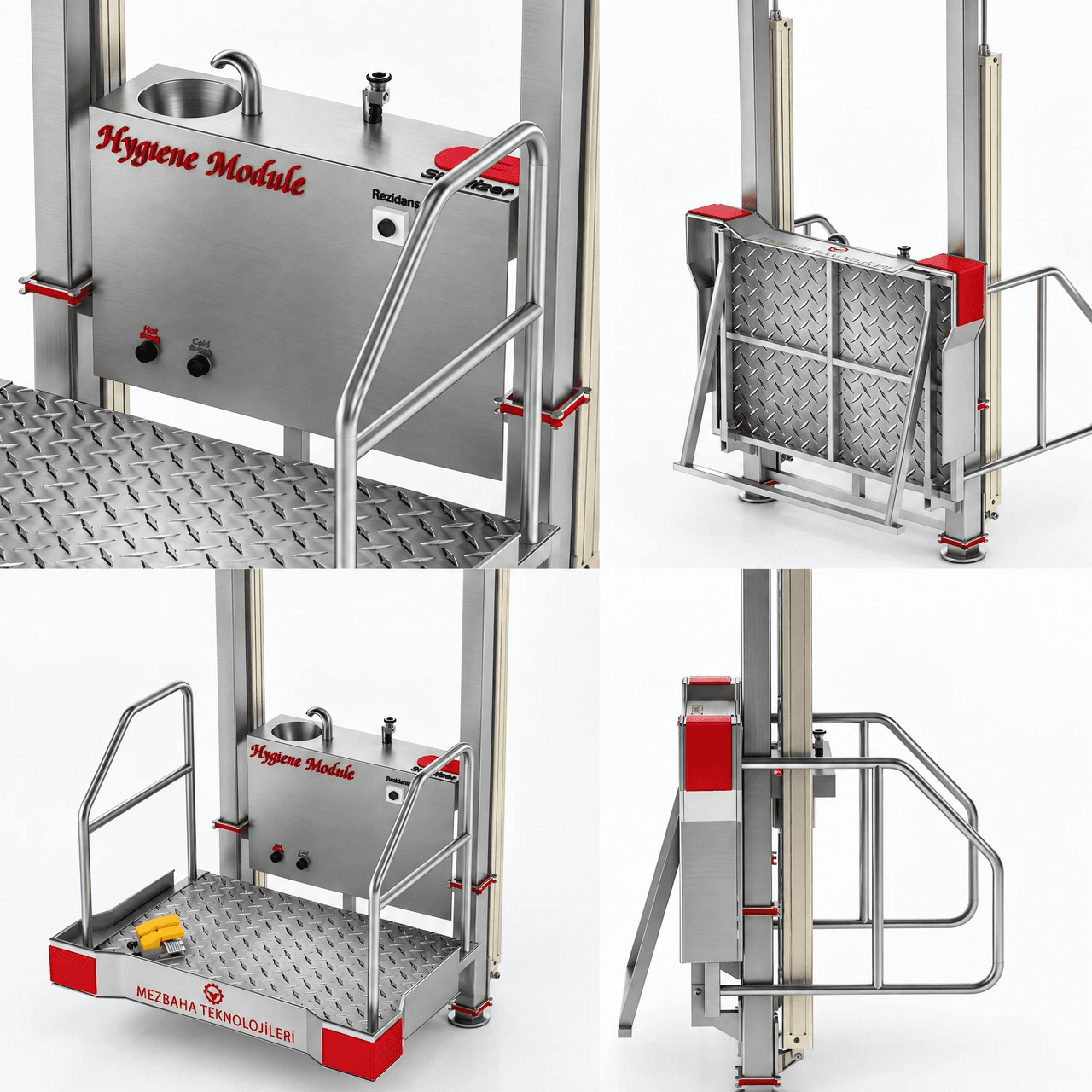

The system is supported by twin pneumatic cylinders, movement-speed control, and a sliding guide structure. A control panel together with lower and upper limit switches helps manage platform movement in a controlled manner.

Durable Platform Construction

Designed at 800 × 1,000 mm according to operating conditions, the platform is covered with 3 mm aluminium sheet. A Ø 1-inch pipe parapet around the platform edge and a 100 × 100 × 4 mm box-profile frame create a strong and safe structure.

Pneumatic System Protection

An air-inlet filter and air dryer help protect the pneumatic cylinders. The system is centred by two polyamide skids positioned 1,000 mm apart, supporting balanced operation.

Technical Specifications

Product Type: Pneumatic Transferring Platform Operating System: Foot-controlled pneumatic movement and lowering system Carrying Capacity: At least 200 kg Working Height: 500–1,700 mm Platform Dimensions: 800 × 1,000 mm, according to operating conditions Platform Covering: 3 mm aluminium sheet Drive System: Twin pneumatic cylinders Control System: Control panel, movement-speed control, and lower-upper limit switches Air-System Protection: Air-inlet filter and air dryer Guiding: Two polyamide skids positioned 1,000 mm apart Edge Protection: Ø 1-inch pipe parapet Frame: 100 × 100 × 4 mm box profile Body: Complete stainless steel construction

Outstanding Advantages

•Working Height Adapted to Each Station: The adjustable level can be positioned according to animal height and the butcher’s operating point. •Controlled Pneumatic Movement: Twin cylinders, movement-speed control, and limit switches support managed operation. •At Least 200 kg Carrying Capacity: Provides dependable carrying capability for different work applications. •Protected Pneumatic System: The air filter and dryer help protect pneumatic cylinders. •Balanced and Safe Use: Sliding guides, polyamide skids, and protective parapets focus on stable and safe use. Equip your slaughterhouse stations with a flexible, controlled, and safe working solution using the Pneumatic Transferring Platform.
